Commanders Act Gateway

This document describes how to deploy Commanders Act Gateway, a unified first-party gateway that uses one single setup and one single path on your domain to power multiple tracking and hosting use cases.

Commanders Act Gateway includes Google Tag Gateway, but is not limited to Google. It is designed to serve and collect data for all your marketing and analytics partners, using the same first-party infrastructure.

One setup, one first-party path, three usages:

• Google Tag Gateway (GA4, Google Ads)

• First-party tracking to all server-side destinations

• First-party hosting of third-party libraries

If your goal is to implement Google Tag Gateway, you are in the right place. If your goal is to build a durable, vendor-agnostic first-party tracking architecture, you are also in the right place.

---

Why use Commanders Gateway?

1. Advantages of using a gateway

A gateway setup improves data collection quality and completeness across your marketing stack.

• Vendor scripts are served from your own domain, which redauces the likelihood of being blocked by adblockers.

• Browser restrictions (such as Safari’s ITP) often limit or block third-party cookies and some 1st party javascript cookies, but with a first-party server-side setup, measurement remains more reliable.

• This ensures more accurate tracking, providing partners with higher-quality signals for measurement, attribution, and optimization.

2. Advantages of using Commanders Gateway

On top of the benefits of any gateway approach, Commanders Gateway adds unique advantages:

• Not limited to Google Tag Gateway — the same durable setup applies to all your partners (Meta, Snapchat, Bing, Awin, etc.).

• Unified setup: a single path (/mypath) serves and proxies all vendor libraries.

• Obfuscated JavaScript filenames are automatically provided by Commanders Act, making detection by blocking lists far more difficult.

• With the same simple path, you can also activate other first-party hosting and tracking features such as: hosting your tag management containers, server-side event tracking, or anonymous CMP statistics. A single setup powers your whole first‑party hosting and tracking system.

• A centralized configuration simplifies deployment and maintenance while remaining future-proof against upcoming browser restrictions.

---

Overview

Commanders Gateway lets you deploy marketing and measurement tags using your own first-party infrastructure, hosted on your website’s domain. This infrastructure sits between your website and your partners’ services (Google, Meta, Bing, Snapchat, Awin, etc.).

With Commanders Gateway:

• Google libraries (gtag.js / gtm.js) are loaded directly from your first-party domain.

• Other vendor libraries are served from /mypath/js/ using obfuscated filenames.

• All measurement requests are proxied through your domain before being forwarded to the respective partner endpoints.

---

Google Tag Gateway (GTG) and consent

This section is written for the verification of requirements on Consent Mode with Google Tag Gateway (GTG). It explains what GTG changes for consent, how to check enrollment, and what to do if a "late" consent signal is detected on a GTG-enrolled domain.

What Google Tag Gateway changes for consent

Google Tag Gateway (GTG) for advertisers lets a website serve Google tags (gtag.js, gtm.js) from the site's own first‑party domain instead of googletagmanager.com, using a CDN, load balancer, or web server. Commanders Act Gateway can be used to implement GTG (see Architecture below).

GTG does not change what consent mode does — it changes where the Google tag is served from and, critically, when it can load relative to your consent banner. That timing is where the impact on consent lives:

• One‑click / automated CDN injection (the in‑UI setup offered by Google for Cloudflare, Akamai, Fastly, or a Google Cloud Load Balancer) makes Google inject the routing rule directly into your CDN or load balancer configuration, generally placing the Google tag very early in the page. Because this injection happens outside your tag management or page source, you typically can no longer control the order in which scripts load relative to your consent banner. If your CMP's consent stub has not yet run and set default consent states, the Google tag can fire first.

• Manual / self-service GTG setup, where you configure the routing yourself and reference the first‑party script directly in your page source, keeps script load order under your control — you decide whether the Google tag or your CMP's consent script loads first.

When a Google tag fires before your CMP has set a default consent state, this is what Google calls a "late" consent signal: the tag runs with an unknown/undefined consent state instead of respecting the default your CMP intended to set. This can cause tags to behave as if no consent framework were present, and it is flagged by Google's own diagnostic tools (see Verification below).

Rolling back GTG is not the recommended way to resolve a late consent signal: doing so forfeits the first‑party measurement durability benefits GTG is designed to provide. The recommended remediation's are described in If a late consent signal is detected below.

Google's documentation on GTG

• Google tag gateway for advertisers – overview

• Set up Google tag gateway for advertisers

Verify if a tag is enrolled in GTG

Before investigating a consent issue related to GTG, confirm whether the domain is actually enrolled. Any of the following methods can be used:

• In the Google product UI — In Google Tag Manager, go to Admin → Google tag gateway. Each domain is listed with a status: First-party (GTG is active), Not started (GTG has not been enabled), or Activated domains for domains configured manually or through a different tag. The same status is available from the equivalent screen in Google Ads and Google Analytics.

• Google Tag Assistant — Connect Tag Assistant to the website, trigger the relevant tags, and check where the Google tag's requests are actually served from and sent to (Summary → Output → Hits Sent). If Google tag requests are routed to your own domain (for example example.com/mypath/ or example.com/gtag/js) instead of www.googletagmanager.com or www.google-analytics.com, GTG is active for that page.

• Browser DevTools — In the Network tab, check whether the script and measurement requests for gtag.js / gtm.js originate from your first‑party domain rather than a Google domain.

If a "late" consent signal is detected and CAGT enrollment is confirmed

A late consent signal typically shows up in Google's consent debugging tools (Tag Assistant's consent timeline, or a console warning) as the Google tag firing before a default consent state was set, or a consent state reported as "unknown" at the moment the tag fired.

Once you have confirmed both (a) a late consent signal, and (b) that GTG is enrolled on the domain, Google recommends one of the following remediation paths:

1. Adopt Advanced Consent Mode in your Commanders Act CMP setup, and configure Data Transmission Controls and Global Consent Defaults in your Google tag settings (Google Ads, GA4, or Campaign Manager 360) according to your compliance needs. This is the mechanism Google recommends specifically for GTG‑enabled tags — see why below.

2. Migrate all your Google tags into a single Google Tag Manager container, and deploy that container itself via GTG, instead of injecting individual gtag.js tags. This centralizes load‑order control inside GTM, so GTM's built‑in consent checks apply to every Google tag in the container regardless of how the container script is routed.

3. Set up GTG manually, so that you — not an automated CDN injection — control where the first‑party GTG script reference is placed in your page source, relative to your Commanders Act consent banner script.

These three options are not mutually exclusive. For example, a manual GTG setup (option 3) can be combined with Advanced Consent Mode (option 1) for additional resilience if load order is ever affected by a future page or CDN change.

Why Advanced Consent Mode is recommended for GTG

Advanced Consent Mode is the mechanism Google recommends for GTG‑enabled tags because, unlike Basic Consent Mode (which simply blocks the tag until a default is set), it is compatible with manual GTG setups: it lets the Google tag load and send privacy‑safe, cookieless pings even while consent is denied or not yet known, and switches to full measurement as soon as the visitor's choice is received — without depending on the exact order in which the GTG script and the consent banner load.

To enable it with Commanders Act:

• Enable Advanced Consent Mode in your Commanders Act Google Consent Mode configuration — see Google Consent Mode in Commanders Act TMS and Google Tag Manager (GTM) – Consent Mode.

• Enable Data Transmission Controls in your Google tag settings (Google Ads, GA4, or Campaign Manager 360) to independently restrict advertising, analytics, and diagnostics data while consent is denied — see Data transmission controls.

• Set Global Consent Defaults for your Google tag so a baseline (denied, unless required otherwise) consent state always applies per region, even in the rare case where the CMP stub cannot be guaranteed to run first — see the region-specific behavior section of Google's consent mode guide and GTM's Consent Overview settings.

Choose the right template! In case you need to enable Google Consent Mode with IAB TCF, use our TCF IAB banner templates (Footer or Popin) and follow the setup specifications mentioned here

---

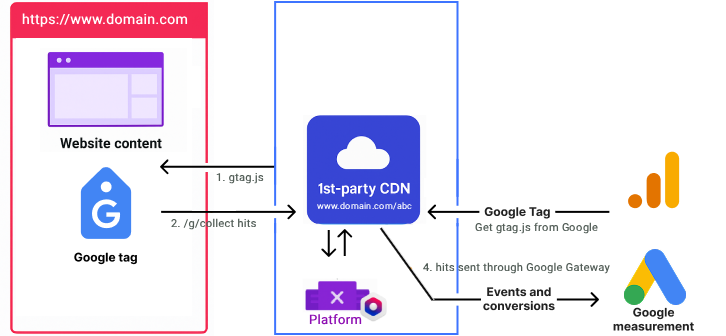

Architecture

With Commanders Gateway, you reserve a single path on your domain, for example:

https://example.com/mypath/

• Google scripts (gtag.js / gtm.js) are loaded directly from /mypath/.

• Other vendor scripts (Meta, Snapchat, Bing, Awin, etc.) are served from /mypath/js/ with an obfuscated filename generated by Commanders Act.

Example:

https://example.com/mypath/js/f4558899203.js

The mapping between each vendor and its obfuscated script filename is provided in the Commanders Act First-Party Hosting interface.

Diagram (conceptual):

Website  →  example.com/mypath/ (Google tags)
         →  example.com/mypath/js/f4558899203.js (Meta, Snap, Bing…)
         →  Commanders Gateway  →  Vendor endpoint

---

Cookie filtering and governance

Some organizations, especially those with strict privacy policies, may have concerns about sending first-party cookies to external partners such as Google. Commanders Gateway supports data minimization and provides mechanisms to control which cookies can transit through the gateway. Two complementary approaches can be used :

Cookie blacklisting at the edge

Customers can filter cookies directly at the CDN or edge layer (Cloudflare Worker, Fastly Compute, etc.). This can be done by simply configuring the Worker code provided in this guide (see CloudFlare free or Faslty tab below) to remove specific cookies before the request is forwarded to Commanders Gateway.

This allows specific cookies to be removed from the request before it reaches Commanders Gateway, ensuring that only the cookies approved by the organization leave its infrastructure.

Cookie whitelisting before forwarding to partners

Commanders Gateway can also enforce a cookie whitelist when forwarding requests to partners.

For example, when forwarding measurement requests to Google, the gateway can be configured to only include Google-related cookies (such as _ga or _gcl_*). All other cookies are automatically excluded from the request sent to Google.

Before you begin

This guide assumes your website is already configured with:

• A tag management system (Commanders Act, Google Tag Manager, or equivalent).

• A CDN or load balancer (Cloudflare, Akamai, Fastly, Nginx, etc.) that can forward requests to external endpoints.

---

Step 1: Choose the tag serving path

You must reserve one path on your website domain.

Example:

/mypath

Caution: This setup reroutes all traffic with the chosen path. To avoid affecting your website, choose a path that's not already in use.

---

Step 2: Route traffic

Cloudflare Enterprise

When using Cloudflare Enterprise, we recommend using a Cloudflare Worker to proxy all traffic from your chosen path, for example /mypath, to Commanders Gateway infrastructure.

This approach is the same as the Cloudflare Free setup. It is more reliable than trying to route the path with Cloudflare Origin Rules, because the Worker gives full control over the request URL, headers, cookie filtering, and geolocation forwarding.

Step 1: Create the Worker

1. In the Cloudflare dashboard, go to Workers & Pages → Create application → Worker.

2. Copy/paste the following code:

const prefix = "/mypath"; // Example path, replace with the path you choose in the previous step
const sid = "12345"; // Example workspace ID (aka site ID), replace with your own ID

// List of cookie names that must NOT be forwarded to Commanders Gateway. You can add your technical cookies if needed
const blacklistedCookies = [
  "PHPSESSID",
  "JSESSIONID"
];

addEventListener("fetch", event => {
  event.respondWith(handleRequest(event.request));
});

function filterCookieHeader(cookieHeader, blacklist) {
  if (!cookieHeader) return "";

  const blacklistSet = new Set(blacklist);

  const filteredCookies = cookieHeader
    .split(";")
    .map(cookie => cookie.trim())
    .filter(cookie => {
      const cookieName = cookie.split("=")[0];
      return !blacklistSet.has(cookieName);
    });

  return filteredCookies.join("; ");
}

async function handleRequest(request) {
  const url = new URL(request.url);

  if (url.pathname.startsWith(prefix)) {
    // Construct target URL. It replaces ${sid} with your workspace/site ID above.
    const targetUrl = `https://s${sid}.commander4.com${url.pathname}${url.search}`;

    // Clone request headers
    const newHeaders = new Headers(request.headers);
    newHeaders.set("X-Forwarded-Host", url.host);
    newHeaders.set("X-Forwarded-For", request.headers.get("CF-Connecting-IP"));
    newHeaders.set("X-Forwarded-Proto", "https");


    const country = request.cf?.country || "";
    const region = request.cf?.regionCode || "";

    if (country) newHeaders.set("X-Forwarded-Country", country);
    if (region) newHeaders.set("X-Forwarded-Region", region);
    if (country && region) {
      newHeaders.set("X-Forwarded-CountryRegion", `${country}-${region}`);
    }

    // Filter the Cookie header before proxying the request.
    const cookieHeader = newHeaders.get("Cookie");
    const filteredCookies = filterCookieHeader(cookieHeader, blacklistedCookies);

    if (filteredCookies) {
      newHeaders.set("Cookie", filteredCookies);
    } else {
      newHeaders.delete("Cookie");
    }

    // Remove Host header to avoid conflicts
    newHeaders.delete("host");

    // Proxy request to Commanders Gateway infra
    const proxyRequest = new Request(targetUrl, {
      method: request.method,
      headers: newHeaders,
      body: request.body,
      redirect: "manual"
    });

    const response = await fetch(proxyRequest);
    const responseHeaders = new Headers(response.headers);
    responseHeaders.delete("NEL");
    responseHeaders.delete("Report-To");

    return new Response(response.body, {
      status: response.status,
      statusText: response.statusText,
      headers: responseHeaders
    });
  }

  return new Response("Not Found", { status: 404 });
}

This Worker proxies requests while adding extra headers:

• X-Forwarded-Host

• X-Forwarded-Country

• X-Forwarded-Region

• X-Forwarded-CountryRegion

It can also filter sensitive or technical cookies before forwarding the request to Commanders Gateway.

Step 2: Bind the Worker to the path

1. In Cloudflare, open your domain settings.

2. Navigate to Workers Routes.

3. Add a new route with:

   • URL pattern: www.example.com/mypath*

   • Worker: select the Worker created in step 1.

Once saved, all requests to /mypath will be proxied to Commanders Gateway.

Step 3: Verify the setup

You can verify the setup by navigating to:

https://example.com/mypath/g/healthy

Note : the default google subpath is /g/ but it could be customized. This google subpath is located immediately after /mypath/ .

It should return:

ok

To verify geolocation forwarding, you can also test:

https://example.com/mypath/g/?validate_geo=healthy

It should also return:

ok

The proxy forwards the visitor IP from Cloudflare's CF-Connecting-IP through X-Forwarded-For. It uses request.cf.regionCode for the ISO region code. Redirects are returned to the browser instead of being followed at the edge.

Verify visitor IP and location forwarding

Open https://example.com/mypath/debug/, using your own website domain and Gateway prefix. Check the fields under computed:

• behindClientProxy must be true.

• clientIpSource must be "x-forwarded-for" (or "true-client-ip" when using that header).

• countryRegionSource must identify the x-forwarded-* headers, normally "x-forwarded-countryregion" when the combined header is provided.

Check that the computed IP and country/region match the visitor, rather than the proxy. Use ISO codes, for example country FR, region IDF and combined value FR-IDF. A full region name such as Île-de-France is ignored. If no usable visitor IP or location is forwarded, the Gateway falls back to the proxy's IP or location. A successful health check alone does not confirm visitor IP and location forwarding.

Cloudflare Snippet

Cloudflare Snippets provide a lighter alternative to a full Worker for proxying the Commanders Gateway path. A Snippet runs JavaScript at the edge and is associated with a Snippet rule that determines which requests execute it.

Cloudflare Snippets are available on Pro, Business, and Enterprise plans. The hostname used for the gateway must be proxied through Cloudflare.

Step 1: Create the Snippet

1. In the Cloudflare dashboard, open your domain.

2. Go to Rules → Snippets.

3. Create a new Snippet and give it a descriptive name, for example Commanders Gateway.

4. Paste the following code:

const CONFIG = {
  prefix: "/mypath", // Replace with the gateway path chosen for your website
  targetBase: "https://s1234.commander4.com", // Replace 1234 with your workspace/site ID
  blacklistedCookies: [
    "PHPSESSID",
    "JSESSIONID"
  ]
};

function filterCookieHeader(cookieHeader, blacklist) {
  if (!cookieHeader) return "";
  const blacklistSet = new Set(blacklist);
  return cookieHeader
    .split(";")
    .map(c => c.trim())
    .filter(c => {
      const name = c.split("=")[0].trim();
      return !blacklistSet.has(name);
    })
    .join("; ");
}

export default {
  async fetch(request) {
    const url = new URL(request.url);

    if (!url.pathname.startsWith(CONFIG.prefix)) {
      return new Response("Not Found", { status: 404 });
    }

    const remainingPath = url.pathname.slice(CONFIG.prefix.length) || "/";
    const targetUrl = `${CONFIG.targetBase}${CONFIG.prefix}${remainingPath}${url.search}`;

    const newHeaders = new Headers(request.headers);

    newHeaders.set("X-Forwarded-Host", url.host);
    newHeaders.set("X-Forwarded-For", request.headers.get("CF-Connecting-IP"));

    newHeaders.set("X-Forwarded-Proto", "https");

    const country = request.cf?.country || "";
    const region = request.cf?.regionCode || "";
    if (country) newHeaders.set("X-Forwarded-Country", country);
    if (region) newHeaders.set("X-Forwarded-Region", region);
    if (country && region) {
      newHeaders.set("X-Forwarded-CountryRegion", `${country}-${region}`);
    }

    const cookieHeader = newHeaders.get("Cookie");
    const filteredCookies = filterCookieHeader(cookieHeader, CONFIG.blacklistedCookies);
    if (filteredCookies) {
      newHeaders.set("Cookie", filteredCookies);
    } else {
      newHeaders.delete("Cookie");
    }

    newHeaders.delete("host");

    const proxyRequest = new Request(targetUrl, {
      method: request.method,
      headers: newHeaders,
      body: request.body,
      redirect: "manual"
    });

    const response = await fetch(proxyRequest);

    if (response.status >= 300 && response.status < 400) {
      return new Response(response.body, {
        status: response.status,
        headers: response.headers
      });
    }

    return response;
  }
};

Step 2: Customize the configuration

Update the values at the top of the Snippet:

• prefix: replace /mypath with the path reserved for Commanders Gateway on your domain.

• targetBase: replace s1234.commander4.com with the Commanders Gateway endpoint associated with your workspace/site ID.

• blacklistedCookies: add any session, sensitive, or internal cookies that must not be forwarded to Commanders Gateway.

The Snippet also forwards the visitor's country and region through X-Forwarded-Country, X-Forwarded-Region, and X-Forwarded-CountryRegion.

Redirect responses from Commanders Gateway are intentionally returned to the browser instead of being automatically followed at the edge.

Step 3: Configure the Snippet rule

Associate the Snippet with a rule that only matches your Commanders Gateway path.

For example, in the Expression Editor:

starts_with(http.request.uri.path, "/mypath")

Replace /mypath with the same path configured in CONFIG.prefix.

Keep the Snippet rule and CONFIG.prefix synchronized. If they use different paths, requests may not be proxied as expected.

Deploy the Snippet after testing it with Cloudflare's preview tools.

Step 4: Verify the setup

After deployment, verify:

• https://example.com/mypath/healthy → should return ok.

• https://example.com/mypath/?validate_geo=healthy → should return ok when geolocation forwarding is correctly configured.

• Cookies listed in blacklistedCookies are no longer present in requests received by Commanders Gateway, while other cookies are preserved.

The proxy forwards the visitor IP from Cloudflare's CF-Connecting-IP through X-Forwarded-For. It uses request.cf.regionCode for the ISO region code. Redirects are returned to the browser instead of being followed at the edge.

Verify visitor IP and location forwarding

Open https://example.com/mypath/debug/, using your own website domain and Gateway prefix. Check the fields under computed:

• behindClientProxy must be true.

• clientIpSource must be "x-forwarded-for" (or "true-client-ip" when using that header).

• countryRegionSource must identify the x-forwarded-* headers, normally "x-forwarded-countryregion" when the combined header is provided.

Check that the computed IP and country/region match the visitor, rather than the proxy. Use ISO codes, for example country FR, region IDF and combined value FR-IDF. A full region name such as Île-de-France is ignored. If no usable visitor IP or location is forwarded, the Gateway falls back to the proxy's IP or location. A successful health check alone does not confirm visitor IP and location forwarding.

Cloudflare Free

When using Cloudflare Free, the setup relies on a simple Worker that proxies all traffic from your chosen path (e.g. /mypath) to Commanders Gateway infrastructure.

Step 1: Create the Worker

1. In the Cloudflare dashboard, go to Workers & Pages → Create application → Worker.

2. Copy/paste the following code:

const prefix = "/mypath"; // Example path, replace with the path you choose in the previous step
const sid = "12345"; // Example workspace ID (aka site ID), replace with your own ID

// List of cookie names that must NOT be forwarded to Commanders Gateway. You can add your technical cookies if needed
const blacklistedCookies = [
  "PHPSESSID",
  "JSESSIONID"
];

addEventListener("fetch", event => {
  event.respondWith(handleRequest(event.request));
});

function filterCookieHeader(cookieHeader, blacklist) {
  if (!cookieHeader) return "";

  const blacklistSet = new Set(blacklist);

  const filteredCookies = cookieHeader
    .split(";")
    .map(cookie => cookie.trim())
    .filter(cookie => {
      const cookieName = cookie.split("=")[0];
      return !blacklistSet.has(cookieName);
    });

  return filteredCookies.join("; ");
}

async function handleRequest(request) {
  const url = new URL(request.url);
  if (url.pathname.startsWith(prefix)) {
    // Construct target URL (it replaces ${sid} with your workspace/site ID above)
    const targetUrl = `https://s${sid}.commander4.com${url.pathname}${url.search}`;

    // Clone request headers
    const newHeaders = new Headers(request.headers);
    newHeaders.set("X-Forwarded-Host", url.host);
    newHeaders.set("X-Forwarded-For", request.headers.get("CF-Connecting-IP"));
    newHeaders.set("X-Forwarded-Proto", "https");


    const country = request.cf?.country || "";
    const region = request.cf?.regionCode || "";
    if (country) newHeaders.set("X-Forwarded-Country", country);
    if (region) newHeaders.set("X-Forwarded-Region", region);
    if (country && region) {
      newHeaders.set("X-Forwarded-CountryRegion", `${country}-${region}`);
    }

    // Filter the Cookie header before proxying the request.
    const cookieHeader = newHeaders.get("Cookie");
    const filteredCookies = filterCookieHeader(cookieHeader, blacklistedCookies);

    if (filteredCookies) {
      newHeaders.set("Cookie", filteredCookies);
    } else {
      newHeaders.delete("Cookie");
    }

    // Remove Host header to avoid conflicts
    newHeaders.delete("host");

    // Proxy request to Commanders Gateway infra
    const proxyRequest = new Request(targetUrl, {
      method: request.method,
      headers: newHeaders,
      body: request.body,
      redirect: "manual"
    });
    const response = await fetch(proxyRequest);
    const responseHeaders = new Headers(response.headers);
    responseHeaders.delete("NEL");
    responseHeaders.delete("Report-To");

    return new Response(response.body, {
      status: response.status,
      statusText: response.statusText,
      headers: responseHeaders
    });
  }
  return new Response("Not Found", { status: 404 }); // Return 404 if request path does not match prefix
}

This Worker proxies requests while adding extra headers (X-Forwarded-Host, X-Forwarded-Country, X-Forwarded-Region).

Step 2: Bind the Worker to the path

1. In the Cloudflare, open your domain settings.

2. Navigate to Workers Routes.

3. Add a new route with:

   • URL pattern: www.example.com/mypath*

   • Worker: select the Worker created in step 1.

Once saved, all requests to /mypath will be proxied to Commanders Gateway.

The proxy forwards the visitor IP from Cloudflare's CF-Connecting-IP through X-Forwarded-For. It uses request.cf.regionCode for the ISO region code. Redirects are returned to the browser instead of being followed at the edge.

Verify visitor IP and location forwarding

Open https://example.com/mypath/debug/, using your own website domain and Gateway prefix. Check the fields under computed:

• behindClientProxy must be true.

• clientIpSource must be "x-forwarded-for" (or "true-client-ip" when using that header).

• countryRegionSource must identify the x-forwarded-* headers, normally "x-forwarded-countryregion" when the combined header is provided.

Check that the computed IP and country/region match the visitor, rather than the proxy. Use ISO codes, for example country FR, region IDF and combined value FR-IDF. A full region name such as Île-de-France is ignored. If no usable visitor IP or location is forwarded, the Gateway falls back to the proxy's IP or location. A successful health check alone does not confirm visitor IP and location forwarding.

CloudFront

Use your existing CloudFront distribution to route the reserved first-party path to Commanders Act Gateway. In the examples below, replace mypath with your Gateway prefix and 1234 with your Commanders Act workspace/site ID.

Step 1: Create the Gateway origin

1. Open your distribution and go to Origins → Create origin.

2. Set Origin domain to s1234.commander4.com, without a protocol or path.

3. Leave Origin path empty. The complete request path, including /mypath, must reach the Gateway unchanged.

4. Use HTTPS only for the connection to the origin, on port 443.

5. Save the origin.

Step 2: Create the Gateway behavior

Go to Behaviors → Create behavior and configure:

Setting	Required value
Path pattern	/mypath/*, or /<prefix>/* for your chosen prefix
Origin	The Gateway origin created above
Viewer protocol policy	Redirect HTTP to HTTPS
Allowed HTTP methods	GET, HEAD, OPTIONS, PUT, POST, PATCH, DELETE
Cache policy	Managed-CachingDisabled
Origin request policy	Managed-AllViewerExceptHostHeader

Place this behavior before any broader pattern that could match Gateway requests.

The trailing /* in the path pattern is required. /mypath alone matches only that exact URL: requests such as /mypath/js/..., /mypath/cdp/... and /mypath/g/... would be routed to your website instead of the Gateway.

Select the complete list of allowed HTTP methods. Events use POST and browser CORS preflight requests use OPTIONS. Allowing only GET and HEAD blocks them.

Managed-AllViewerExceptHostHeader forwards all viewer headers except Host, all query strings, all cookies, and CloudFront protocol, device and location headers, including CloudFront-Viewer-Country and CloudFront-Viewer-Country-Region. CloudFront sets the origin request's Host to s1234.commander4.com.

Do not use Managed-AllViewer or a custom origin request policy on the Gateway behavior. The previous custom metrics-proxy-headers policy is no longer needed.

A custom policy using All viewer headers and the following CloudFront headers forwards the website's Host, which prevents the Gateway origin from working correctly. A custom policy using All viewer headers except does not let you add CloudFront location headers, so it loses geolocation forwarding.

Step 3: Create and associate the required CloudFront Function

The function preserves the website hostname in x-forwarded-host before CloudFront replaces Host with the Gateway origin hostname. It also copies the available CloudFront country and region headers to the Gateway forwarding headers.

1. In CloudFront → Functions, create a function using JavaScript runtime 2.0.

2. Paste the following code:

function handler(event) {
  var request = event.request;
  var headers = request.headers;

  // Preserve the website hostname without modifying the read-only Host header.
  headers['x-forwarded-host'] = { value: headers.host.value };

  // Replace any viewer-supplied forwarding headers with CloudFront location data.
  delete headers['x-forwarded-country'];
  delete headers['x-forwarded-region'];
  delete headers['x-forwarded-countryregion'];

  var country = headers['cloudfront-viewer-country'];
  var region = headers['cloudfront-viewer-country-region'];

  if (country && country.value) {
    headers['x-forwarded-country'] = { value: country.value };
  }
  if (region && region.value) {
    headers['x-forwarded-region'] = { value: region.value };
  }
  if (country && country.value && region && region.value) {
    headers['x-forwarded-countryregion'] = {
      value: country.value + '-' + region.value
    };
  }

  // Keep the complete URI and query string unchanged.
  return request;
}

1. Save, test and publish the function.

2. Edit the /mypath/* behavior. Under Function associations, associate the published function with Viewer request.

3. Save the behavior and wait for the distribution deployment to finish.

The Viewer request function is mandatory. Do not add x-forwarded-proto to it: AWS forbids this header in edge functions and returns 502 Bad Gateway if the function sets it. The Gateway defaults to HTTPS. Do not modify the read-only Host header in the function.

CloudFront automatically adds the visitor IP to X-Forwarded-For. With the origin request policy and Viewer request function above, the Gateway uses the forwarded visitor IP and the available country/region codes for Google and Commanders Act collection requests. No IP handling needs to be added to the function.

Step 4: Verify the complete setup

1. Open https://example.com/mypath/debug/, replacing the domain and prefix with your own values.

2. In the returned headers, verify:

   • headers.host is s1234.commander4.com (your workspace/site ID).

   • x-forwarded-host is example.com (your website hostname).

   • When CloudFront location data is available, x-forwarded-country, x-forwarded-region and x-forwarded-countryregion contain the corresponding values.

3. Check https://example.com/mypath/healthy: it should return ok.

4. Trigger a test event through your configured tracking integration. In browser DevTools, confirm the POST request uses your first-party domain and prefix, reaches the Gateway, and appears in the expected event inspector or destination.

5. Test an OPTIONS preflight against the same event endpoint, with the actual website Origin and the headers used by the POST. Confirm it reaches the Gateway and the CORS response permits the request.

Do not stop after the health check: POST and OPTIONS must also work before activation.

Troubleshooting

• Requests below the prefix reach your website: check /<prefix>/* and behavior priority.

• POST or OPTIONS is rejected: check the full list of allowed HTTP methods.

• The debug response shows your website in headers.host: select Managed-AllViewerExceptHostHeader.

• x-forwarded-host is missing: publish and associate the function on Viewer request for the Gateway behavior.

• CloudFront returns 502 after associating the function: verify that it does not set x-forwarded-proto or modify Host.

AWS references: Managed origin request policies and Restrictions on edge functions.

Verify visitor IP and location forwarding

Open https://example.com/mypath/debug/, using your own website domain and Gateway prefix. Check the fields under computed:

• behindClientProxy must be true.

• clientIpSource must be "x-forwarded-for" (or "true-client-ip" when using that header).

• countryRegionSource must identify the x-forwarded-* headers, normally "x-forwarded-countryregion" when the combined header is provided.

Check that the computed IP and country/region match the visitor, rather than the proxy. Use ISO codes, for example country FR, region IDF and combined value FR-IDF. A full region name such as Île-de-France is ignored. If no usable visitor IP or location is forwarded, the Gateway falls back to the proxy's IP or location. A successful health check alone does not confirm visitor IP and location forwarding.

Akamai

Commanders Gateway with Akamai is in beta. If you have a question or issue with your setup, reach out the support

Create the redirect rule

1. Create a new version of your delivery configuration in Property Manager.

2. Under the Property Configuration Settings section, add a new Rule:

   • Name it: Route measurement

3. Add a new Match:

   • Match type: Path

   • Condition: is one of

   • Value: /mypath/*

4. Add a new Behavior:

   • Select Standard Property Behavior and choose Origin Server behavior.

   • Set Origin Server Hostname to s1234.commander4.com.

   • Set Forward Host Header to Origin Hostname.

5. Save the new rule and deploy your changes.

   • ⚠️ Test the redirect rule in your staging environment before rolling out to production.

   • Ensure no other rules modify/remove outgoing response headers (e.g., Content-Type) as this may break scripts.

---

Forward the visitor IP, website hostname and protocol

On the Gateway rule, configure the outgoing origin request to include:

Header	Value
X-Forwarded-Host	The original website hostname from the viewer request
X-Forwarded-Proto	https for the HTTPS website
X-Forwarded-For	The visitor IP, added by Akamai to the outgoing chain

If using True-Client-IP instead, configure Akamai to populate it with the visitor IP. Use the IP determined by Akamai, rather than a value supplied by the browser. Keep Forward Host Header set to Origin Hostname.

Include geolocation information

1. Navigate to the Property Variables section and add the following variables:

Variable name	Security settings
USER_REGION	Hidden
USER_COUNTRY	Hidden

1. Choose your Redirect rule (created above) under Property Configuration Settings.

2. Add two new Set Variable behaviors (one per variable):

Variable	Create Value From	Get Data From	Edgescape Field	Operation
PMUSER_USER_REGION	Extract	Edgescape Data	Region Code	None
PMUSER_USER_COUNTRY	Extract	Edgescape Data	Country Code	None

1. Add two new Modify Outgoing Request Header behaviors:

Action	Select Header Name	Custom Header Name	Header Value
Add	Other...	X-Forwarded-Region	{{user.PMUSER_USER_REGION}}
Add	Other...	X-Forwarded-Country	{{user.PMUSER_USER_COUNTRY}}

Use the Edgescape Region Code (ISO subdivision code), not the region name. Forward the country and region separately as shown above, or provide their combined value through X-Forwarded-CountryRegion (for example FR-IDF).

1. Save the new rule and deploy your changes.

---

Filter cookies before forwarding to Commanders Gateway

You can prevent specific cookies from being forwarded to Commanders Gateway. This can be useful for session cookies, cookies containing sensitive information, or internal technical cookies that should not leave your infrastructure.

The list of cookies to exclude depends on your organization's requirements.

Option 1: Use Akamai cookie management capabilities

If cookie management behaviors are available with your Akamai configuration, configure Akamai to remove the relevant cookies from the request before it is forwarded to Commanders Gateway.

For example, you may want to exclude cookies such as:

PHPSESSID
JSESSIONID

Configure the behavior so that these cookies are removed from the client request sent to the origin, where the origin is your Commanders Gateway endpoint.

The exact name and availability of Akamai cookie management behaviors can vary depending on the Akamai products enabled on your account.

Option 2: Modify the outgoing Cookie header

If cookie management capabilities are not available, you can use a Modify Outgoing Request Header behavior on the Cookie header and remove selected cookies using a regular expression.

Example for PHPSESSID and JSESSIONID:

(?:^|;\s*)(PHPSESSID|JSESSIONID)=[^;]*

Configure:

• Header: Cookie

• Action: Regex Replace

• Regular expression: the expression above, adapted to your cookie list

• Replacement: empty

Test this configuration carefully before deploying it to production. An incorrect regular expression may result in a malformed Cookie header or unintentionally remove cookies that should be forwarded.

If you use several CDN or edge configurations for the same implementation, keep the cookie exclusion list consistent across them.

---

Verify the setup

After deploying the Akamai configuration:

• Navigate to https://example.com/mypath/healthy → should display ok.

• Test geolocation headers: https://example.com/mypath/?validate_geo=healthy → should also display ok.

• Verify that requests forwarded to Commanders Gateway no longer contain the excluded cookie names, while other cookies are still forwarded normally.

Verify visitor IP and location forwarding

Open https://example.com/mypath/debug/, using your own website domain and Gateway prefix. Check the fields under computed:

• behindClientProxy must be true.

• clientIpSource must be "x-forwarded-for" (or "true-client-ip" when using that header).

• countryRegionSource must identify the x-forwarded-* headers, normally "x-forwarded-countryregion" when the combined header is provided.

Check that the computed IP and country/region match the visitor, rather than the proxy. Use ISO codes, for example country FR, region IDF and combined value FR-IDF. A full region name such as Île-de-France is ignored. If no usable visitor IP or location is forwarded, the Gateway falls back to the proxy's IP or location. A successful health check alone does not confirm visitor IP and location forwarding.

Fastly

Fastly support for Commanders Gateway is currently in beta. The steps below are intended for technical users familiar with Fastly Compute (Compute Services). Depending on your Fastly account setup (domains, TLS, products enabled), some production binding steps can vary.

When using Fastly, the setup is different from Cloudflare. You deploy a Compute service (Wasm) and configure it mainly via the Fastly API and CLI from a terminal.

Prerequisites

1. Create an API token in the Fastly interface (scopes must allow Compute, services, backends, and deployments).

2. Export the token in your terminal environment:

export FASTLY_API_TOKEN=XXXXXXXXXXXX

1. Install prerequisites:

• Node.js

• Fastly CLI

Step 1: Create the Compute service

Create a new Compute service:

fastly service create --name "CA Gateway" --type wasm

Fastly returns a service ID, for example:

dyBxiT8wpc2c8ZQg2KRrMN

Save it, you will need it for backend creation and deployments.

Step 2: Create a local Compute project (starter kit)

Generate a local project from the default JavaScript starter kit:

npm create @fastly/compute@latest -- --language=javascript --default-starter-kit

This creates a project structure similar to:

.
├── README.md
├── fastly.toml
├── package.json
└── src
    ├── index.js
    └── welcome-to-compute.html

Step 3: Configure the service ID in fastly.toml

Edit fastly.toml and set the service ID:

# fastly.toml
service_id = "YOUR_SERVICE_ID"

Step 4: Create the backend (Commanders Gateway origin)

Create a backend that points to the Commanders Gateway infrastructure (replace 1234 with your workspace/site ID):

fastly backend create \
  --service-id YOUR_SERVICE_ID \
  --version 1 \
  --name commander_gateway \
  --address s1234.commander4.com \
  --use-ssl \
  --port 443 \
  --ssl-sni-hostname s1234.commander4.com

Notes:

• --version 1 is a typical starting point. If your service already has versions, use the version you intend to deploy.

• The backend address must be s1234.commander4.com (your own workspace/site ID).

Step 5: Implement the routing logic in src/index.js

Replace the content of src/index.js with the following worker code.

You must update:

• prefix (your customer path, example: /mypath)

• sid (your Commanders workspace/site ID, example: s1234)

/// <reference types="@fastly/js-compute" />

import { env } from "fastly:env";
import { includeBytes } from "fastly:experimental";

const prefix = "/PATHACHANGER";              // TODO: replace with your chosen gateway path (e.g. "/mypath")
const sid = "s123456";                       // TODO: replace with your workspace/site ID (e.g. "s1234")
const BACKEND = "commander_gateway";         // Fastly backend name pointing to sid.commander4.com

const STRIP_PREFIX = true;                   // If true, removes the prefix from the forwarded path
const PREPEND_PATH = "/gateway";             // Internal gateway entrypoint on Commanders side (do not change)

// List of cookie names that must NOT be forwarded to Commanders Gateway. Add your technical cookies if needed
const blacklistedCookies = [
  "PHPSESSID",
  "JSESSIONID"
];

addEventListener("fetch", (event) => event.respondWith(handleRequest(event.request, event.client)));

function filterCookieHeader(cookieHeader, blacklist) {
  if (!cookieHeader) return "";

  const blacklistSet = new Set(blacklist);

  const filteredCookies = cookieHeader
    .split(";")
    .map(cookie => cookie.trim())
    .filter(cookie => {
      const cookieName = cookie.split("=")[0];
      return !blacklistSet.has(cookieName);
    });

  return filteredCookies.join("; ");
}

async function handleRequest(request, client) {

  const url = new URL(request.url);

  // Only proxy requests that match the configured prefix
  if (!url.pathname.startsWith(prefix)) {
    return new Response("Not Found", { status: 404 });
  }

  // Build the path that will be forwarded to Commanders Gateway
  let fwdPath = url.pathname;

  // Optionally strip the customer prefix (e.g. "/mypath") so the origin receives "/"
  if (STRIP_PREFIX) {
    fwdPath = fwdPath.slice(prefix.length) || "/";
  }

  // Prepend Commanders internal entrypoint (required)
  if (PREPEND_PATH) {
    fwdPath = PREPEND_PATH + fwdPath;
  }

  // Final origin URL on Commanders infrastructure
  const target = `https://${sid}.commander4.com${fwdPath}${url.search}`;

  // Clone headers and add forwarding info
  const headers = new Headers(request.headers);
  headers.set("X-Forwarded-Host", url.host);
  if (client.address) headers.set("X-Forwarded-For", client.address);

  // Forward geo information when available (optional but recommended)
  const geo = client.geo;
  const country = geo && geo.country_code ? geo.country_code.toUpperCase() : "";
  const region = geo && geo.region ? geo.region : "";
  if (country) headers.set("X-Forwarded-Country", country);
  if (region)  headers.set("X-Forwarded-Region", region);
  if (country && region) headers.set("X-Forwarded-CountryRegion", `${country}-${region}`);

  // Filter the Cookie header before proxying the request.
  const cookieHeader = headers.get("Cookie");
  const filteredCookies = filterCookieHeader(cookieHeader, blacklistedCookies);

  if (filteredCookies) {
    headers.set("Cookie", filteredCookies);
  } else {
    headers.delete("Cookie"); // Remove the Cookie header entirely if all cookies were filtered out
  }

  // Avoid Host header conflicts at origin
  headers.delete("host");

  // Rebuild the request for the origin
  const originReq = new Request(target, {
    method: request.method,
    headers,
    body: request.body
  });

  // Bypass cache to ensure measurement hits are never cached
  const co = new CacheOverride("pass");

  // Send request to the configured Fastly backend
  return fetch(originReq, { backend: BACKEND, cacheOverride: co });

}

Important:

• Replace s1234.commander4.com with your real workspace/site ID endpoint.

• Keep the same prefix as the path you reserve on the customer domain (example: /mypath).

• Do NOT add a trailing slash at the end of the path in customer-side URLs.

Step 6: Deploy

Deploy the Compute service:

npm run deploy

Step 7: Test

After deployment, Fastly provides a temporary domain for testing, for example:

https://plainly-rested-bison.edgecompute.app/mypath/healthy

It should return:

ok

Production binding (customer domain)

At this stage, the Compute service runs on a Fastly-provided test domain. To go live on the customer domain (example: https://example.com/mypath/), you still need to bind the service to the production domain and ensure TLS is in place.

This typically involves, depending on the customer setup:

• Adding the customer domain to the Fastly service, and configuring TLS for it (managed TLS or customer certificate).

• Creating the required DNS record (often a CNAME) so example.com points to Fastly.

• Ensuring the Compute service is the one receiving requests for the chosen path (example: /mypath*) on that domain.

Because the exact steps depend on the Fastly products enabled on the account and how the customer manages TLS and DNS, treat this as a beta step and reach out to support if you need the exact commands for your specific setup.

Verify visitor IP and location forwarding

Open https://example.com/mypath/debug/, using your own website domain and Gateway prefix. Check the fields under computed:

• behindClientProxy must be true.

• clientIpSource must be "x-forwarded-for" (or "true-client-ip" when using that header).

• countryRegionSource must identify the x-forwarded-* headers, normally "x-forwarded-countryregion" when the combined header is provided.

Check that the computed IP and country/region match the visitor, rather than the proxy. Use ISO codes, for example country FR, region IDF and combined value FR-IDF. A full region name such as Île-de-France is ignored. If no usable visitor IP or location is forwarded, the Gateway falls back to the proxy's IP or location. A successful health check alone does not confirm visitor IP and location forwarding.

---

Step 3: Update the scripts in your tag management system or your website

Replace vendor script URLs with the new first-party paths.

Examples:

Google

<!-- Instead of -->
<script async src="https://www.googletagmanager.com/gtag/js?id=G-12345"></script>

<!-- Use -->
<script async src="/mypath/"></script>

Meta (Facebook Pixel)

<!-- Instead of -->
<script src="https://connect.facebook.net/en_US/fbevents.js"></script>

<!-- Use (obfuscated path provided in the Commanders Act interface) -->
<script src="/mypath/js/f4558899203.js"></script>

Snapchat

<script src="/mypath/js/a82b99df732.js"></script>

Bing (UET)

<script src="/mypath/js/c77ac91be11.js"></script>

Each obfuscated filename is automatically generated and available in the Commanders Act First-Party Hosting interface.

OneTag

You can manually change the domain of your cact() setup with the collectionDomain propery Exemple :

cact(..., {collectionDomain: "www.youdomain.com/mypath"});

Warning : do NOT add a / at the end of the path

---

Step 4: Verify setup

• For the global path, check the health endpoint:

  • https://example.com/mypath/healthy → should return ok

• Use browser DevTools to verify that:

  • Google scripts are loaded from /mypath/

  • Other vendor scripts are loaded from /mypath/js/{obfuscated}.js

  • Requests are made to your first-party domain.

• Ensure events appear in the respective partner dashboards (Google Analytics, Facebook Events Manager, etc.).

---

Benefits

• Durability: Tracking continues to work even with Safari ITP and third-party cookie restrictions.

• Resilience: Serving scripts from your domain with obfuscated filenames makes it more difficult for blocking rules to interfere.

• Centralized setup: A single path (/mypath) manages all vendors.

• Future-proof: Adapts to privacy sandbox and upcoming browser restrictions.

Configure first party data collection for Commanders Act features (via Gateway)

This chapter explains how to route Commanders Act data collection through your first party gateway path (for example /mypath) for the main Commanders Act features.

Important notes:

• The gateway path shown in examples (/mypath) is only an example. Customers choose their own path when setting up the gateway in their CDN or edge tool (Cloudflare, Akamai, etc.).

• All examples below assume your gateway is healthy: https://example.com/mypath/healthy returns ok.

---

1. Server-side destinations via the gateway (example: Meta Facebook CAPI)

Commanders Act server-side tracking relies on oneTag tags. Typically, you will have one oneTag per event you want to collect, for example:

• page_view

• add_to_cart

• purchase

To route these oneTag events through the gateway, you must update the oneTag tag configuration so that the cact() setup uses your first party collection domain and path.

In your oneTag tag (or in the shared snippet used by your oneTag tags), set collectionDomain:

cact(..., { collectionDomain: "www.yourdomain.com/mypath" });

Notes:

• Replace www.yourdomain.com/mypath with your own domain and the path you configured in your gateway.

• Do NOT add a trailing / at the end of the path.

• Once this is set, all oneTag events (page_view, add_to_cart, purchase, etc.) will be collected via your first party gateway path.

---

2. CDP, Campaign Analytics and CMP collection via the gateway

(Data Activation, Campaign Analytics, CMP statistics and proof of consent)

These three features rely on the same routing mechanism. To send their data through the gateway, you must define the variable tC.clientCollectDns either:

• directly inside each relevant tag, or

• in a global configuration tag that runs before all Commanders Act tags (recommended).

Example:

tC.clientCollectDns = "www.yourdomain.com/mypath";

Behavior:

• As soon as tC.clientCollectDns is defined, collection for Data Activation, Campaign Analytics, and CMP-related tracking will be made via the gateway.

• mypath is only an example. Customers can use any path they configured in their gateway setup.

Implementation options:

• Option A (simple): add the line directly inside the Data Activation / Campaign Analytics / CMP tag.

• Option B (recommended): add it in a global configuration tag that runs before all Commanders Act tags.

---

Verification checklist

After applying the changes above, verify:

• The gateway health endpoint: https://example.com/mypath/healthy returns ok.

• In browser DevTools (Network tab), Commanders Act collection requests go to your first party domain and path (for example https://example.com/mypath/...).

• Events and data appear as expected in:

  • Server-side destination dashboards (example: Meta Events Manager for CAPI)

  • Data Activation flows

  • CMP statistics and proof of consent reporting (when applicable)

  • Campaign Analytics reporting
